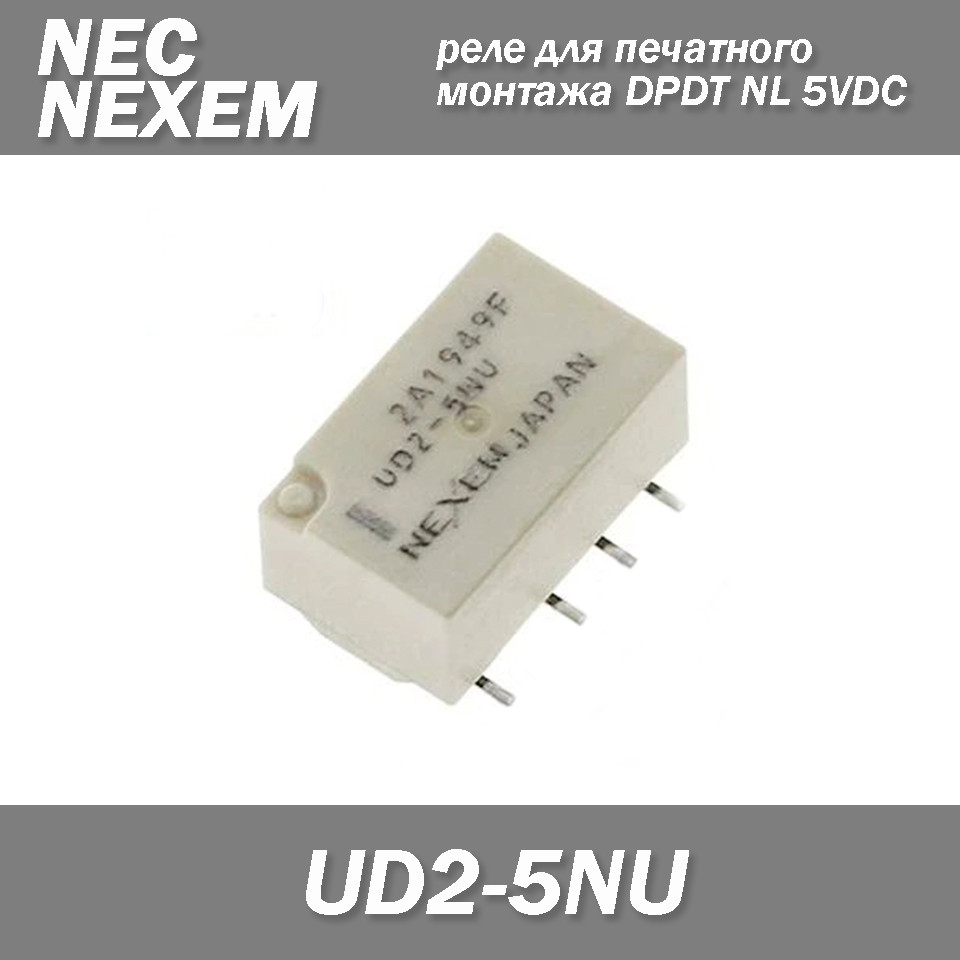

Реле UD2-5NU NEXEM (TM) реле для друкованого монтажу DPDT NL 5VDC Singal Relay CDP TCS

Реле UD2-5NU NEXEM (TM) реле для друкованого монтажу DPDT NL 5VDC Singal Relay CDP TCS

В наявності моделі: NEC або NEXEM (залежно від того, що буде в наявності на дату покупки)

EU RoHSCompliant
ECCN (US)EAR99
Contact ArrangementDPDT
Contact Form2 Form C
DC Coil Voltage (V)5
Coil Current (mA)28.1
Coil Resistance (Ohm)178
Maximum Contact Resistance (mOhm)100
Insulation Resistance (MOhm)1000
Maximum Pick-Up Voltage4VDC
Minimum Dropout Voltage0.5VDC
Maximum AC Switching Voltage (V)250
Maximum DC Switching Voltage (V)220
Maximum Switching Current (A)1
Operate Time (ms)2
Release Time (ms)1
Electrical Life (Operations)100000
Mechanical Life (Operations)50000000
Relay ConstructionNon-Latching
Contact MaterialSilver/Gold
MountingSurface Mount
Termination StyleGull Wing
Number of Terminals8
SealUnsealed
Мінімальний температурний режим (°C)-40
Maximum Operating Temperature (°C)85
Product Weight (g)0.8
Product Length (mm)10.6
Product Depth (mm)8.6
Product Height (mm)5.45
