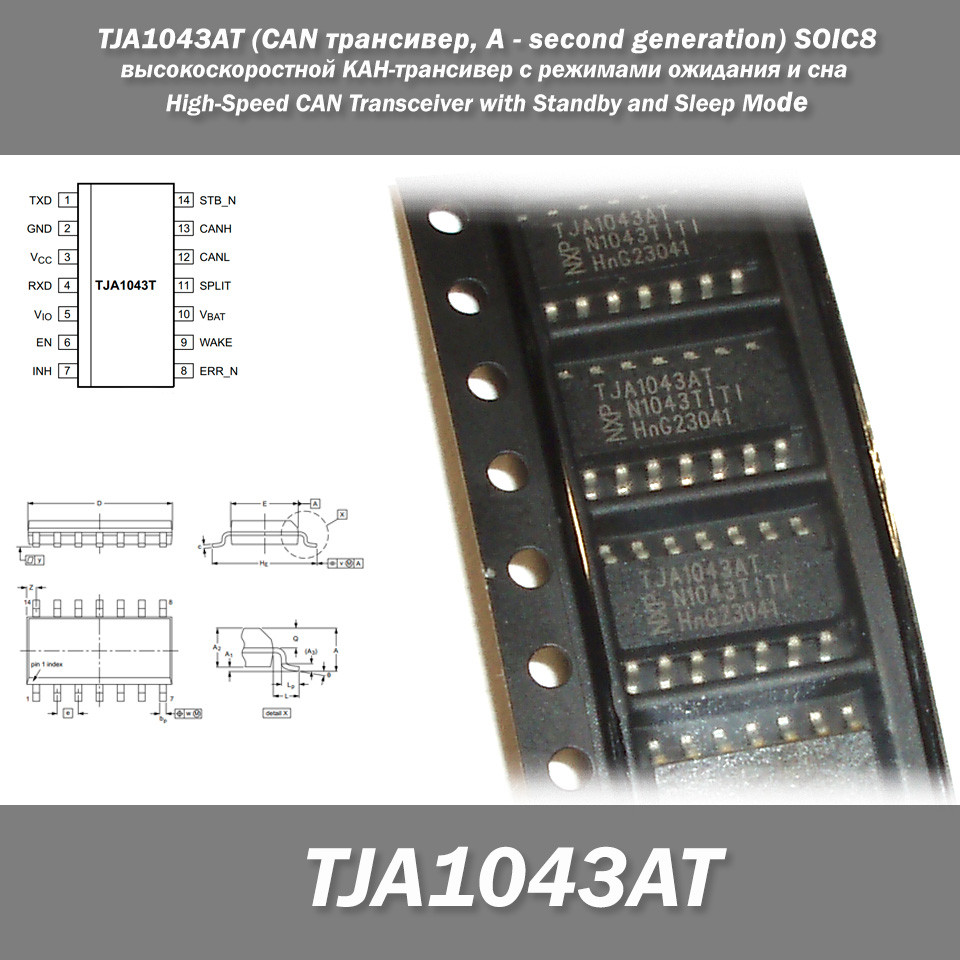

TJA1043AT (CAN трансивер, A — second generation) SOIC058 високошвидкісний Кан-трансивер із режимами очікування і з

TJA1043AT (CAN трансивер, A — second generation) SOICE8 високошвидкісний Кан-трансивер із режимами очікування і сну High-Speed CAN Transceiver with Standby and Sleep Mode

Версія ресивера TJA1043A з покращеними характеристиками EMC і ESD.

General
 - ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant;
 - Loop delay symmetry timing enables reliable communication at data rates up to 5 Mbit/s in the CAN FD fast phase;
 - Suitable for 12 V and 24 V systems;
 - Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI);
 - VIO input allows for direct interfacing with 3 V and 5 V microcontrollers;
 - SPLIT voltage output for stabilizing the recessive bus level;
 - Listen-only mode for node diagnosis and failure containment;
 - Available in SO14 and HVSON14 packages;
 - Leadless HVSON14 package (3.0 mm  4.5 mm) with improved Automated Optical;
 - Inspection (AOI) capability;
 - AEC-Q100 qualified;
 - Dark green product (halogen free and Restriction of Hazardous Substances (RoHS) compliant);

Low-power management
 - Very low current Standby and Sleep modes, with local and remote wake-up;
 - Capability to power down the entire node while supporting local, remote and host wake-up;
 - Wake-up source recognition;
 - Transceiver disengages from the bus (zero load) when VBAT absent;
 - Functional behavior predictable under all supply conditions;

Protection and diagnosis (detection and signalling)
 - High ESD handling capability on the bus pins;
 - Bus pins and VBAT protected against transients in automotive environments;
 - Transmit Data (TXD) dominant time-out function with diagnosis;
 - TXD-to-RXD short-circuit handler with diagnosis;
 - Thermal protection with diagnosis;
 - Undervoltage detection and recovery on pins VCC, VIO and VBAT;
 - Bus line short-circuit diagnosis;
 - Bus dominant clamping diagnosis;
 - Cold start diagnosis (first battery connection);

Ціна вказана за 1 шт.
