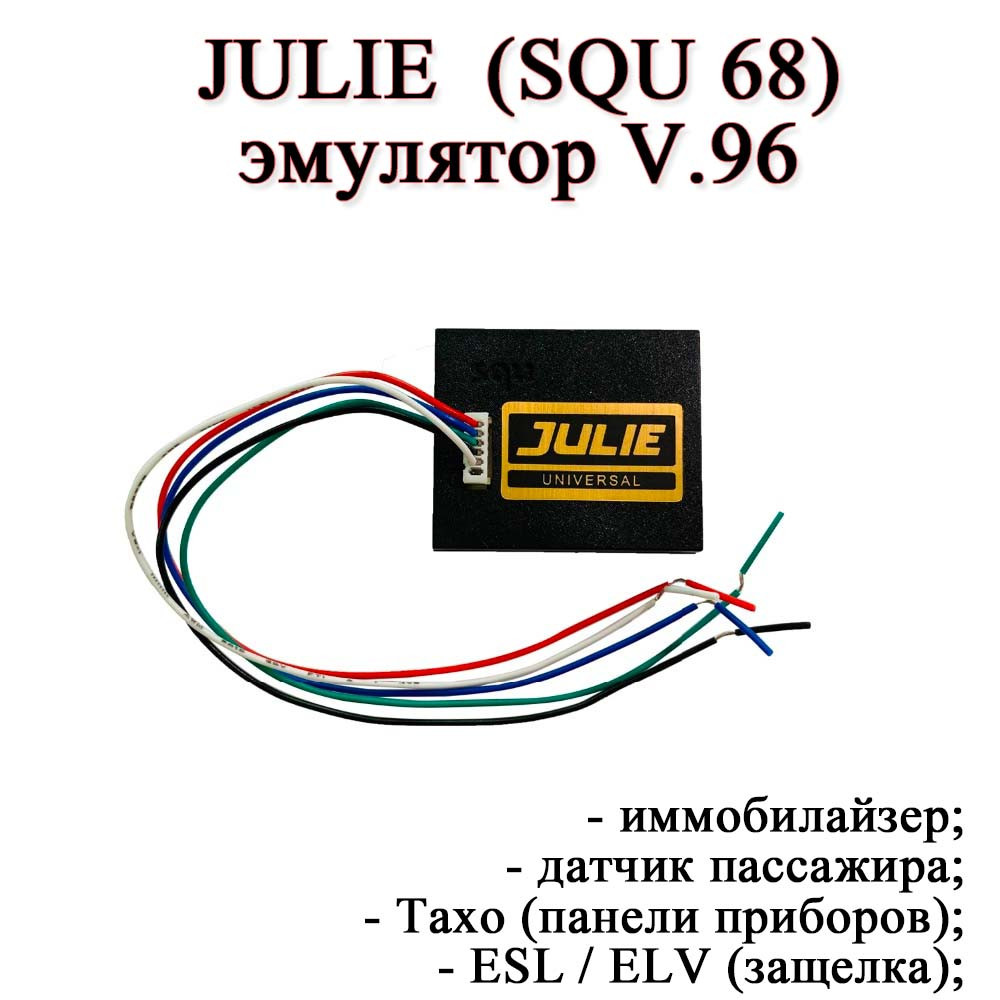

JULIE SQU 68 Emulator V96 NEW універсальний емулятор Джулія IMMO killer decoder CAN-BUS обхідник

JULIE SQU 68 Emulator V96 NEW універсальний емулятор Джулія IMMO killer decoder CAN-BUS обхідник

JULIE/SQU OF 68 Universal IMMO Emulator V96 = емулятор іммобілайзера + емулятор датчика пасажира + Тахо програми панелі приладів, ESL/ELV-емулятор.

Чорна плата, нова версія (v.96)

Універсальний багатофункціональний емулятор сигналів від блоків керування іммобілайзером IMO. Застосовується коли оринінальний блок в автомобілі несправний або на столі для експериментів.
Також Julie емулятор застосовується для емуляції сигналів датчика присутності пасажира. Нова версія з новими функціями.

Підтримка гучного парку сучасних авто.
Програмування під конкретне авто відбувається за допомогою наплавлення перемичок на платі (згідно з інструкцією).

Підтримка:
Audi, BMW, Chrysler, Citroen, Daewoo, Fiat, Honda, KIA, Mazda, Mercedes, Mini Cooper, Nissan, Opel, Peugeot, Renault, Seat, Suzuki, VW, Yamaha.

---ИММО---

Додана підтримка IMMO OFF:

MM 8GMF.A4 | ALFA ROMEO
Visteon DCU 102 | Citroen / Peugeot
MM IAW 5SF8 | Fiat / Alfa Romeo / Lancia
Найпопулярніші функції IMMO OFF-рішення:

Simos PCR2.1 | VAG group
Simos PPD1.2 | VAG group
Siemens SIM32 | Citroen & Peugeot
All immo OFF solutions by brand
Alfa Romeo, Bosch, EDC16C39, EDC15C-5.8, EDC15C7, M2.10.3, ME7.9.10, MED7.6.1, Magneti Marelli, 9GF, 8GMF, 8GSW, IAW5NF, IAW5SF, IAW49F, IAW4AF, MJD 9DF, MJD 8F2, MJD 6F3
VISTEON, DCU102

Audi
Siemens/Continental, SIMOS PCR2.1, SIMOS PPD1.1, SIMOS PPD1.2, SIMOS PPD1.5

Bosch
MED9.5, EDC16, EDC15, ME7, MP9.0, M3.8.4

Hitachi
Every ECU to 1998 year

Magneti Marelli
IAW4AV, IAW4CV, IAW4LV, IAW4MV

Siemens
5WP4 340, 5WP4 167, 5WP4 457, 5WP4 228, 5WP4 154

BMW
EWS II & III SYSTEMS, E36, E34, E39, E38

Chrysler
Bosch, EDC15V-6.3

Citroen
Bosch, EDC17C10, EDC16, EDC15, ME7.4.7, ME7.4.6, ME7.4.5, ME7.4.4

Delphi
Delphi DCM3.4

Magneti Marelli
IAW 6LPx.x, IAW 48P2, IAW 1AP90, IAW 1AP83, IAW 1AP81, IAW 1AP80, IAW 1AP43, IAW 1AP41, IAW 1AP40, IAW 1AP20, IAW 1AP10

Sagem
S2000, SL96

Siemens/Continental
SID 807, SID 806, SID 804, SID 803, SID 803A, SID 802, SID 201

Valeo
V46.11

Visteon
DCU102

Daewoo
Delco, Red-white plug, Blue plug

Kemsco
D3, D32, D42, 4R, 42R

Siemens
2S

Delphi
MT80

Fiat
Bosch, EDC16C39, EDC15C-5.8, EDC15C7, M2.10.3, ME7.9.10, MED7.6.1

Magneti Marelli
9GF, 8GMF, 8GSW, IAW5NF, IAW5SF, IAW49F, IAW4AF, MJD 9DF, MJD 8F2, MJD 6F3

VISTEON
DCU102

Ford
ECUs with VW symbol

Honda
1999-2002 year, Accord, CRV, Civic

Jeep
Bosch, EDC15V-6.3

Kia
Sportage I 2.0 TD, Zexel ECU

Lancia
Bosch, EDC16C39, EDC15C-5.8, EDC15C7, M2.10.3, ME7.9.10, MED7.6.1

Magneti Marelli
9GF, 8GMF, 8GSW, IAW5NF, IAW5SF, IAW49F, IAW4AF, MJD 9DF, MJD 8F2, MJD 6F3

VISTEON
DCU102

Mazda
Denso, B5E1, B5F3, B34A, B35B, B34B, BP5C, BP5D, FP87, RF2A, RF3R, RF4D, RF4F, ZLO5, FPG6

Mercedes
Bosch, EDC15C6, EDC15C0, EDC1.4, ME1.0, ME2.0, M 3.4.4, MP 6.1
Lucas, 4-socket ECU, DCU R
VDO, MSM, MSE
Siemens, 5WK9 124

Nissan
2000-2002 year with NATS 4 or 5 immo, Almera, Micra, Primera, Terrano

Opel
Delco, D95011, D97002

Bosch
M 1.5.4, M 2.8.1

Peugeot
Bosch, EDC17C10, EDC16, EDC15, ME7.4.7, ME7.4.6, ME7.4.5, ME7.4.4

Delphi
Delphi DCM3.4

Magneti Marelli
IAW 6LPx.x, IAW 48P2, IAW 1AP90, IAW 1AP83, IAW 1AP81, IAW 1AP80, IAW 1AP43, IAW 1AP41, IAW 1AP40, IAW 1AP20, IAW 1AP10

Sagem
S2000, SL96

Siemens/Continental
SID 807, SID 806, SID 804, SID 803, SID 803A, SID 802, SID 201

Valeo
V46.11

Visteon
DCU102

Polonez
Delco, DAFZ

Renault
Bosch, EDC16, EDC15, MSA15.5.5

Delphi
DCM3.4, DCM1.2, DDCR

Lucas
DCU3

Sagem
S3000, S2000, SAFIR2, SAFIR1

Siemens
EMS3134, EMS3132, EMS3110, FENIX 5, SID 310, SID 305, SID 304, SID 301, SIM32, SIRIUS34, SIRIUS32

Valeo
V42, V40

Seat
Siemens/Continental, SIMOS PCR2.1, SIMOS PPD1.1, SIMOS PPD1.2, SIMOS PPD1.5, Bosch, MED9.5, EDC16, EDC15, ME7, MP9.0, M3.8.4

Hitachi
Every ECU to 1998 year

Magneti Marelli
IAW4AV, IAW4CV, IAW4LV, IAW4MV

Siemens
5WP4 340, 5WP4 167, 5WP4 457, 5WP4 228, 5WP4 154

Skoda
Siemens/Continental, SIMOS PCR2.1, SIMOS PPD1.1, SIMOS PPD1.2, SIMOS PPD1.5

Bosch
MED9.5, EDC16, EDC15, ME7, MP9.0, M3.8.4

Hitachi
Every ECU to 1998 year

Magneti Marelli
IAW4AV, IAW4CV, IAW4LV, IAW4MV

Siemens
5WP4 340, 5WP4 167, 5WP4 457, 5WP4 228, 5WP4 154

Subaru
Denso, 33920

Suzuki
Denso, 33920-x, 33921-x

Hitachi
33920.x

Mitsubishi
33920.x

Volkswagen
Siemens/Continental, SIMOS PCR2.1, SIMOS PPD1.1, SIMOS PPD1.2, SIMOS PPD1.5
Bosch, MED9.5, EDC16, EDC15, ME7, MP9.0, M3.8.4

Hitachi
Every ECU to 1998 year

Magneti Marelli
IAW4AV, IAW4CV, IAW4LV, IAW4MV

Siemens
5WP4 340, 5WP4 167, 5WP4 457, 5WP4 228, 5WP4 154

---ESL / ELV Julie Emulator---

With Julie Emulator you can also replace the Electronic Steering Wheel Lock signal in some of the most popular Mercedes and Renault models. It happens quite often that the ESL becomes damaged or blocked. Now you don’t have to replace it with a new, expensive module. All you need is Julie Emulator. Trust us – you will save loads of money!

ESL/ELV replacement solutions by brand
Renault, Talisman, Captur, Megane II & III, Clio III & IV, Fluence, Laguna II & III, Espace IV, Scenic II & III

Mercedes
W202, W208, W210, W203, W209, W211, Sprinter W906, Vito 639

AirBag Емулятор датчика присутності пасажира (Seat Occupancy Sensor):

Julie Emulator also lets you diagnose a popular problem with the passenger seat occupancy sensor. All you need to do is connect Julie Emulator tothe passenger’s seat occupancy plug – if the passenger’s seat occupancy sensor was damaged, the error on the dashboard will no longer show up. Easy and affordable!

Seat Occupancy Sensor solutions by brand
BMW, 2007 – 2010 year, Series 1 (E81), Series 3 (E90, E92, E93), Series 5 (E60, E63, E64), Series 7 (E65), Series X (E70, E71), 2003 – 2007 year, Series 1 (E87), Series 3 (E90), Series 5 (E60, E63), Series 7 (E65)

1997 – 2003 year
Series 3 (E36, E46), Series 5 (E39), Series 7 (E38), Series 8 (E31), Series X (E53)

Fiat
Stilo

Ford
Mondeo II

Mazda
Premacy, MX-5, 626, 323, 6 (GG1)

Mercedes
E-Class, W210, W211, W212, S207, C207, A207
C-Class, W202, W203
S-Class, W220, W221
A-Class, W168
CLS-Class, W219
CLK-Class, W209
SL-Class, W230
SLK-Class, W171
ML-Class, W163
Vaneo, W414
Vito, W639, W638
Mini Cooper (2002 – 2005)

Opel
Astra G, Corsa C, Meriva A, Omega B FL, Vectra C, Signum, Zafira A, Tacho
The last function of Julie is related to the instrument cluster on the dashboard. Juolie can simulate the signal from the car, which will help you determine if the instrument cluster is working correctly before installing it into the car.



---Tacho---

Audi, Audi Q7, Audi A6

Citroen
C4 Picasso

Peugeot
EMF Display

Renault
Kangoo III, Scenic II & III, Espace IV

Volkswagen
Passat B6
