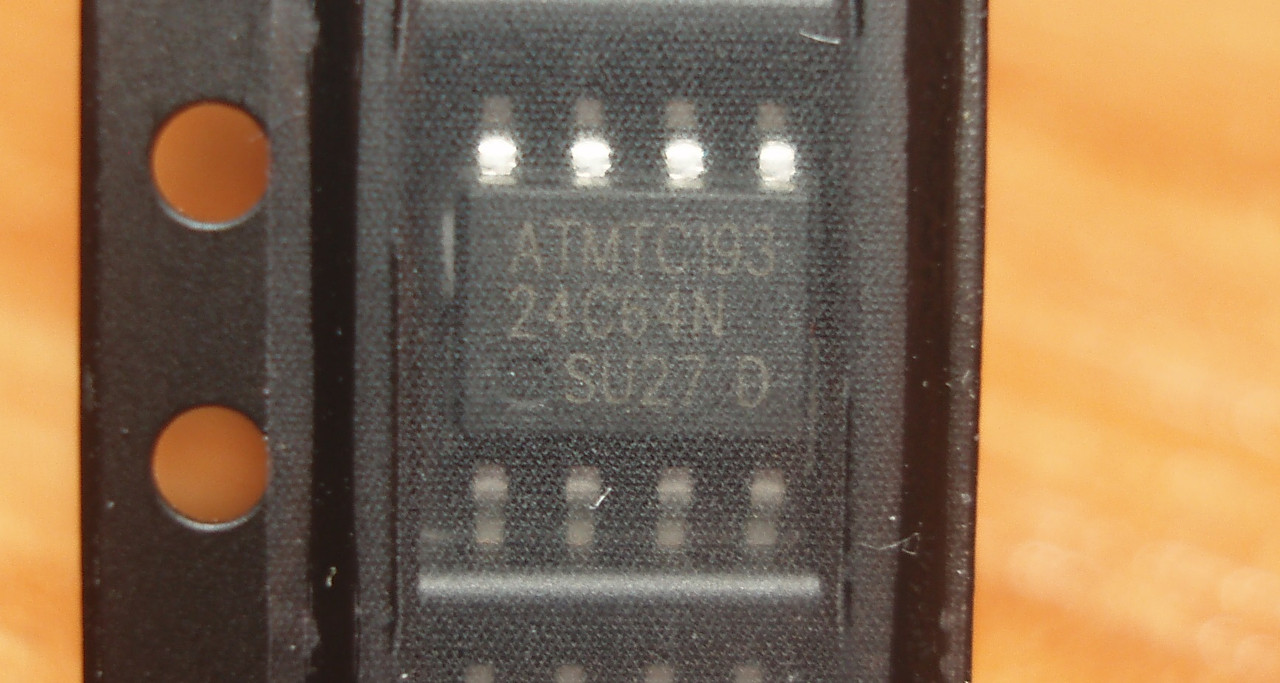

Пам'ять EEPROM 24C64 64K SOP8 smd (860 ATMTC193 24C64N SU27 D AT24C64N AT24N64) 2-Wire Serial EEPROM
40 ₴
Мінімальна сума замовлення на сайті — 50 грн
- В наявності
- Код: 5507
- +380 (94) 964-35-86Viber
- +380 (66) 435-82-85Signal
Пам'ять EEPROM 24C64 64K SOP8 smd (860 ATMTC193 24C64N SU27 D AT24C64N AT24N64) 2-Wire Serial EEPROM
Мікросхема СМД пам'ять ЄПРОМ.
Ціна вказана за 1 шт.
• Low-Voltage and Standard-Voltage Operation
– 5.0 (VCC = 4.5V to 5.5V)
– 2.7 (VCC = 2.7V to 5.5V)
– 2.5 (VCC = 2.5V to 5.5V)
– 1.8 (VCC = 1.8V to 5.5V)
• Low-Power Devices (ISB = 2 µA @ 5.5V) Available
• Internally Organized 4096 x 8, 8192 x 8
• 2-Wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility
• Write Protect Pin for Hardware Data Protection
• 32-Byte Page Write Mode (Partial Page Writes Allowed)
• Self-Timed Write Cycle (10 ms max)
• High Reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
– ESD Protection: >3,000V
• Automotive Grade and Extended Temperature Devices Available
• 8-Pin JEDEC PDIP, 8-Pin and 14-Pin JEDEC SOIC, 8-Pin EIAJ SOIC,
and 8-pin TSSOP Packages
#5507
- Ціна: 40 ₴
